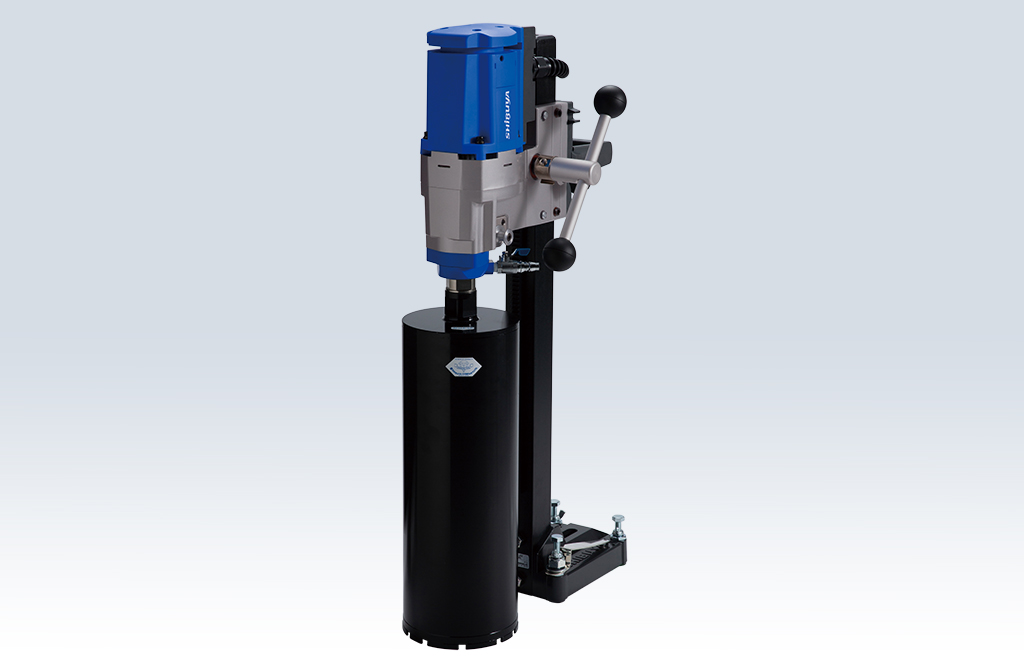

Stand: TS-165 Motor: H1521

Applications and Features

Ideal machine for small-middle size jobs.
Multi-position water swivel inlet for convenience.
Right and left hand feed handle positions.
Two speed motor.
Built-in on/off switch with motor overload protection.
Portable Residual Current Device (P.R.C.D.) automatically shuts off electricity in the event of electric leakage. (220-240 V only)
Includes a water collector ring.
Normal Stand Column: 803 mm (31″) with 545 mm(21″) stroke.

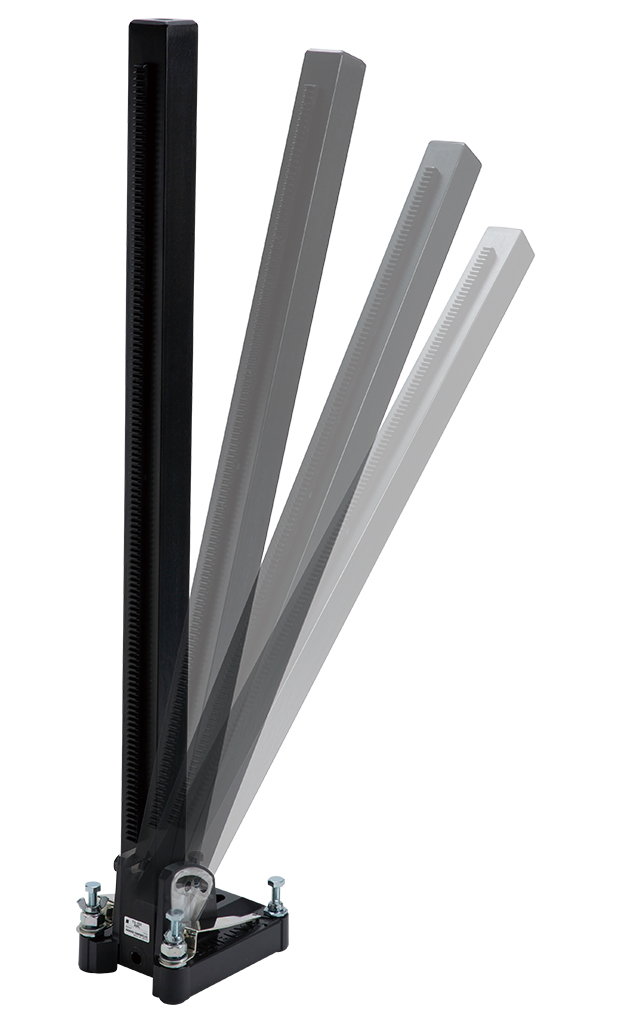

AB52 Column: 1011 mm (40″) with 715 mm (28″) stroke.
Case Version Column: 793 mm (31″) with 497 or 535 mm (20″ or 21″) stroke. (extension 200 mm column in use)
50 mm (2″) square column.

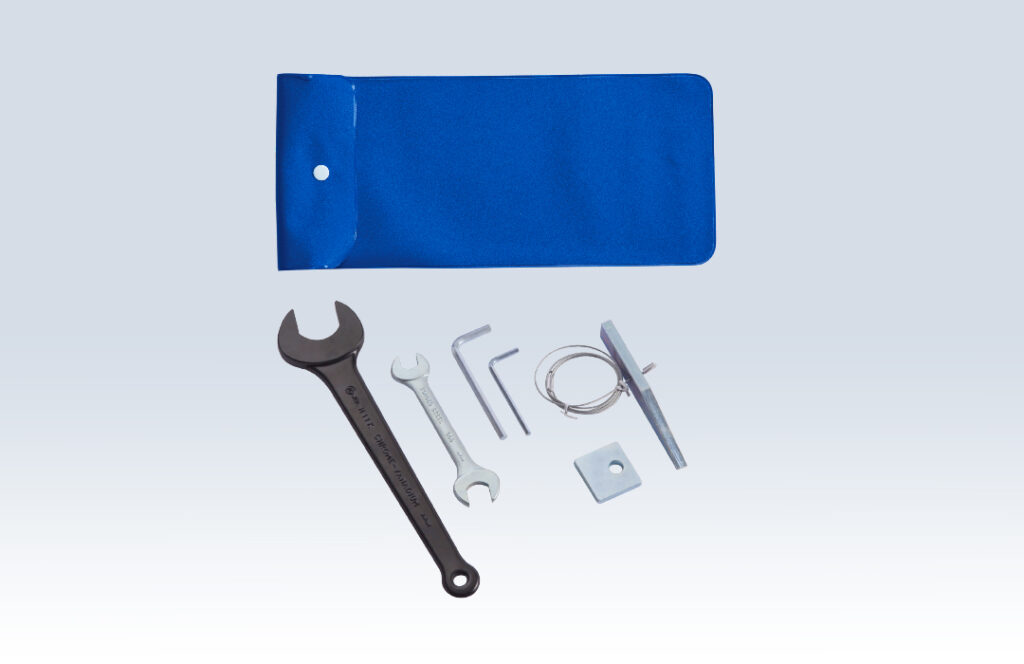

Tool kit including wrenches and allen keys.

AB52 swivel base available as option

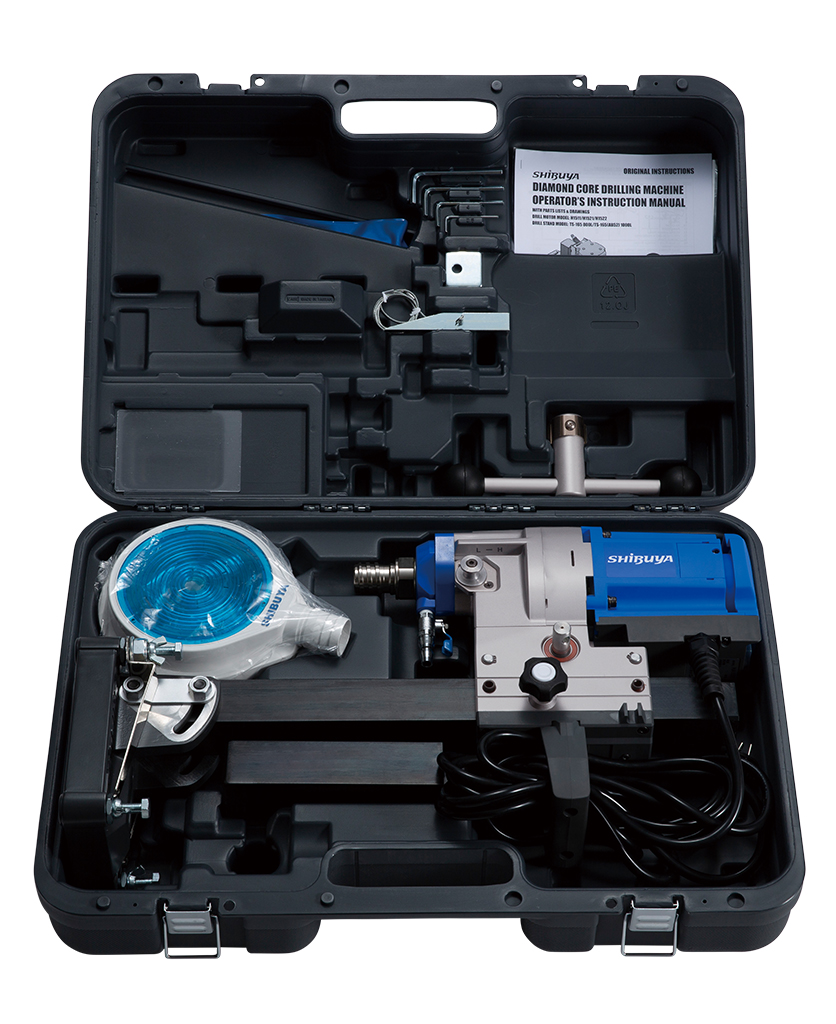

Carry case available as option

Rated Input

1,900 W (100V)・1,700 W (110-120V)・2,100 W (220-240V)

Voltage

AC 100V・110-120V・220-240V, 50/60 Hz

Speed

Spindle Revolutions at No Load

700/1,000 rpm (H1521 100V)・750/1,150 rpm (H1521 110-120V)・850/1,300 rpm (H1521 220-240V)・850/1,750 rpm (H1522 220-240V)

Spindle Revolutions at Rated Load

490/690 rpm (H1521 100V)・520/790 rpm (H1521 110-120V)・470/710 rpm (H1521 220-240V)・470/970 rpm (H1522 220-240V)

Spindle Thread

UNC 1-1/4"・A-Rod

Weight

H1521 w carriage block: 9.4 kg・TS-165(800L): 5.2 kg・TS-165(AB52)(1000L): 7.5 kg・TS-165(Case Ver.): 6.8 kg・TS-165(AB52 Case Ver.): 7.3 kg

Height

803 mm・1011 mm (AB52)・793 mm (Case Ver.)

Base Size

146 x 205 mm

Available Stroke

545 mm・715 mm (AB52)・535 mm (Case Ver.)・497 (AB52 Case Ver.)

Specifications and product appearances are subject to change without prior notice.　

The diamond core bit in the picture is not included in the item.
