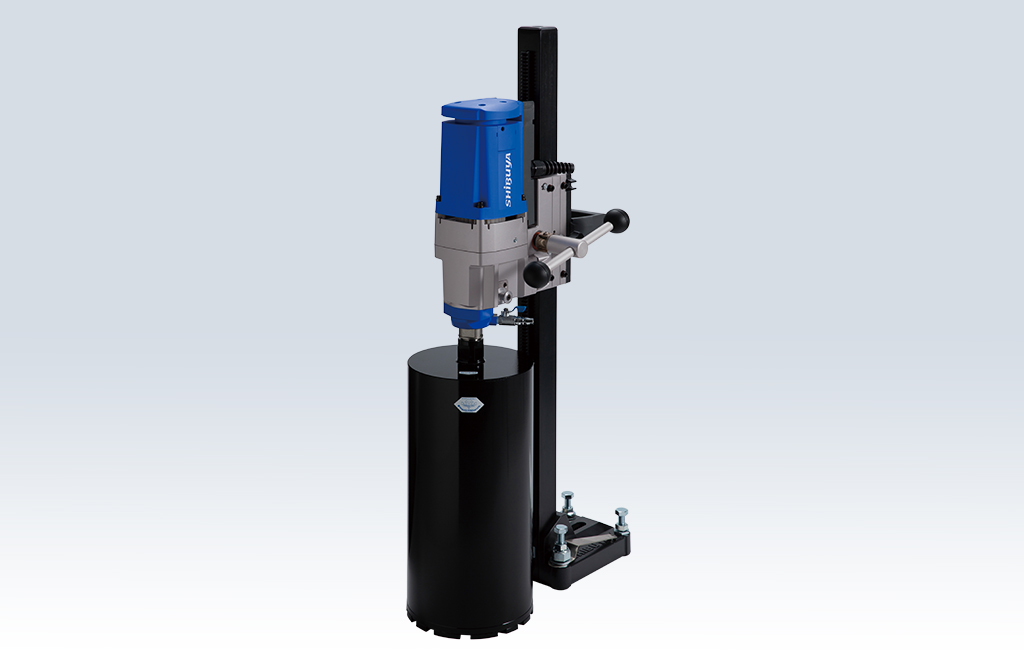

Stand: TS-255 Motor: H2021
Maximum Bit Capacity: 250 mm ( 10") with 30 mm Spacer
Applications and Features
- The most powerful medium-sized SHIBUYA core drilling machine.
- Built-in on/off switch with motor overload protection.
- Ideal machine for middle size jobs.
- Multi-position water swivel inlet for convenience.
- Right and left hand feed handle positions.
- Portable Residual Current Device (P.R.C.D.) automatically shuts off electricity in the event of electric leakage. (220-240 V only)
- Includes a water collector ring.
- Normal Stand Column: 803 mm (31″) with 493 mm (19″) stroke.
- Long Column: 1003 mm (39″) with 693 mm(27″) stroke.
- AB52 Column: 1011 mm (40″) with 680 mm (27″) stroke.
- 50 mm (2″) square column.
- Tool kit including wrenches and allen keys.
AB52 swivel base available as option
The models used in this movie are TS-252/R2021 (220-240V), rated input 2,300W and TS-255/H2021 (220-240V), rated input 3,450W. The comparison between TS-252/R2021 (110-120V) and TS-255/H2021 (110-120V) will not provide the same outcome.
Specification
Rated Input
2,700 W (100V)・2,300 W (110-120V)・3,450 W (220-240V)
Voltage
AC 100V・110-120V・220-240V, 50/60 Hz
Speed
2
Spindle Revolutions at No Load
470/1,050 rpm (H2021 100V)・450/950 rpm (H2021 110-120V)・550/1,200 rpm (H2021 220-240V)
Spindle Revolutions at Rated Load
320/720 rpm (H2021 100V)・310/680 rpm (H2021 110-120V)・300/730 rpm (H2021 220-240V)
Spindle Thread
UNC 1 -1/4"・A-Rod
Weight
H2021 w carriage block: 12.2 kg・TS-255(800L): 6.6 kg・TS-255(1000L): 7.5 kg・TS-255(AB52): 7.2 kg
Height
803 mm・1003 mm・1011 mm (AB52)
Base Size
158 x 217 mm・146 x 205 mm (AB52)
Available Stroke
493 mm ・693 mm (1003L) ・680 mm (AB52)
Specifications and product appearances are subject to change without prior notice.
The diamond core bit in the picture is not included in the item.
Standard Tool Kit
- Allen Key 4 and 6 mm
- Double-End Spanner 17 x 19 mm(AB52)
- Single-End Spanner 21 mm (Fixed version) and 36 mm
- Core Removal Wedge Lasso
- 3/8″ Square Washer
