Stand: TS-605 Motor: H2531

Maximum Bit Capacity: 600 mm (24") with 130 mm Spacer

Applications and Features

Ideal machine for large diameter core drilling jobs.
Multi-position water swivel inlet for convenience.
Right and left hand feed handle positions.
Built-in on/off switch with motor overload protection.
Portable Residual Current Device (P.R.C.D.)automatically shuts off electricity in the event of electric leakage. (220-240 V only)
Normal Stand Column: 1106mm (43″) with 634 mm (25″) stroke.
73 mm (2-7/8″) square column.
Positive carriage lock.
Tool kit including wrenches and allen keys.

Note this movie is just for reference only. The models used in this movie are TS-403/R2231 (220-240V), rated input 2,800W and TS-405/H2231 (220-240V), rated input 3,450W. The comparison between TS-603/R2531 (220-240V), rated input 2,800W and TS-605/H2531 (220-240V), rated input 3,450W nor TS-603/R2531 (110-120V), rated input 3,100W and TS-605/H2531 (110V or 110-120V), rated input 2,750W or 3,450W will not provide the same

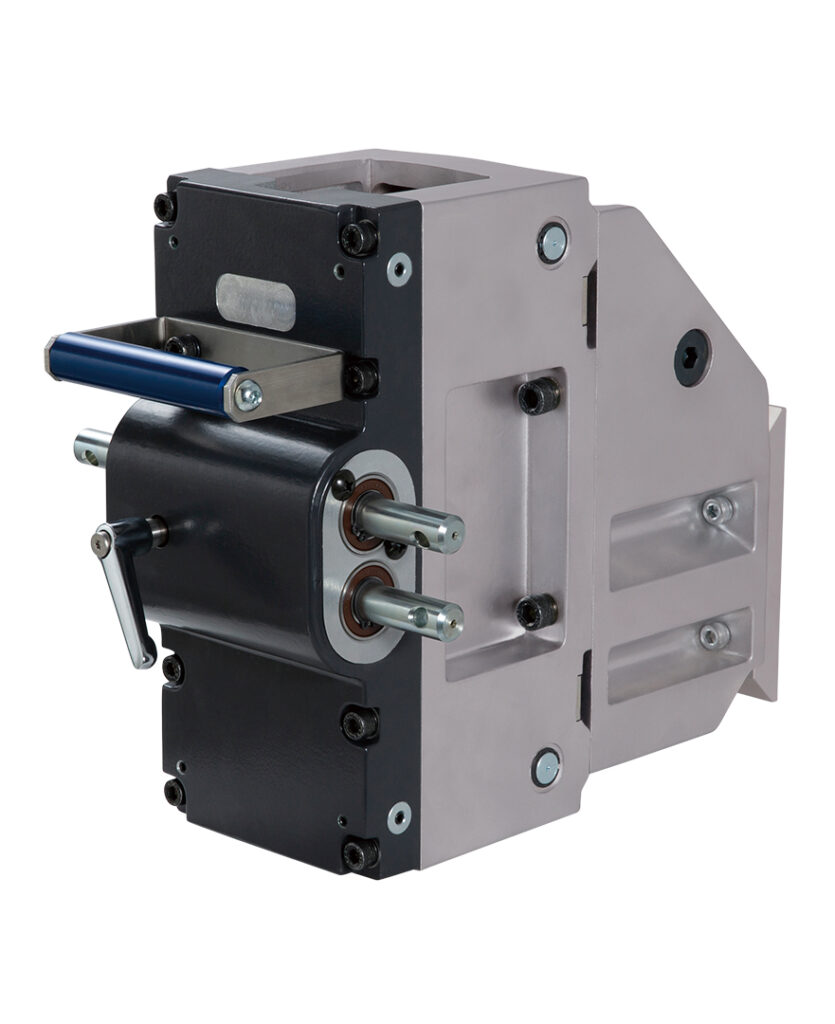

1:1 direct gear & 1:2.4 reduction gear shaft

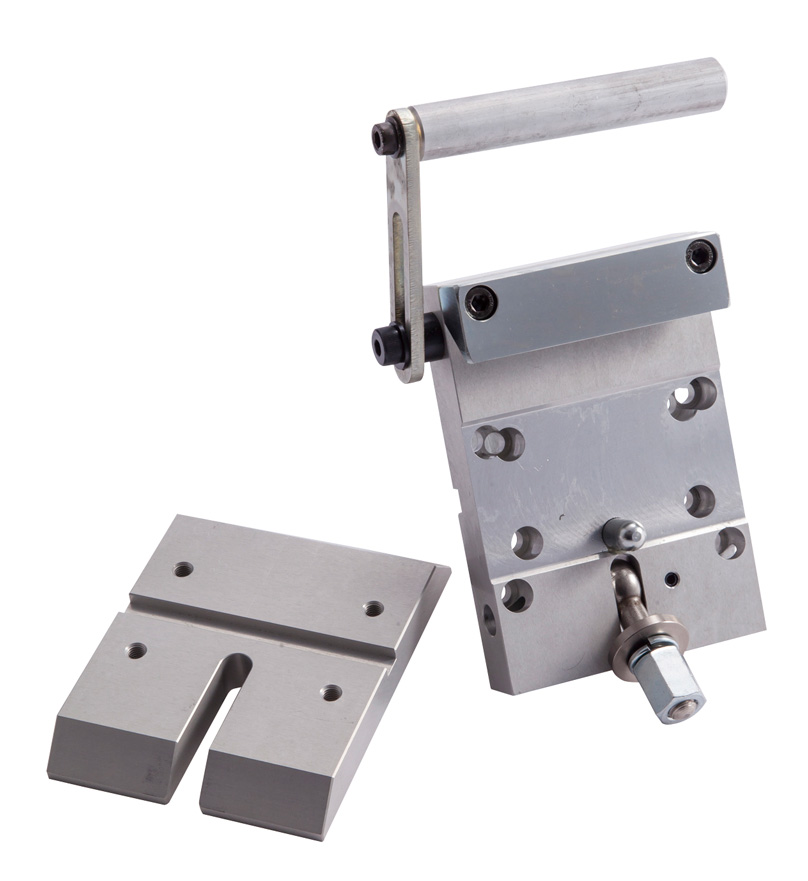

Quick release spacer (standard accessory)
enables easy mounting/dismounting of the motor.

Specification

Rated Input

2,750 W (110 V)・ 3,450 W (110-120 V and 220-240 V)

Voltage

AC 110 V・110-120 V・220-240 V, 50/60 Hz

Speed

Spindle Revolutions at No Load

150 / 300 / 600 rpm (110-120 V)・175 / 350 / 700 rpm (220-240 V)

Spindle Revolutions at Rated Load

100 / 200 / 400 rpm (110-120 V)・105 / 210 / 420 rpm (220-240 V)

Spindle Thread

UNC 1 -1/4"・A-Rod

Weight

H2531 motor: 20.6 kg・TS-605 w carriage block: 42.9 kg

Height

1106 mm

Base Size

230 x 400 mm

Available Stroke

634 mm

Specifications and product appearances are subject to change without prior notice.　

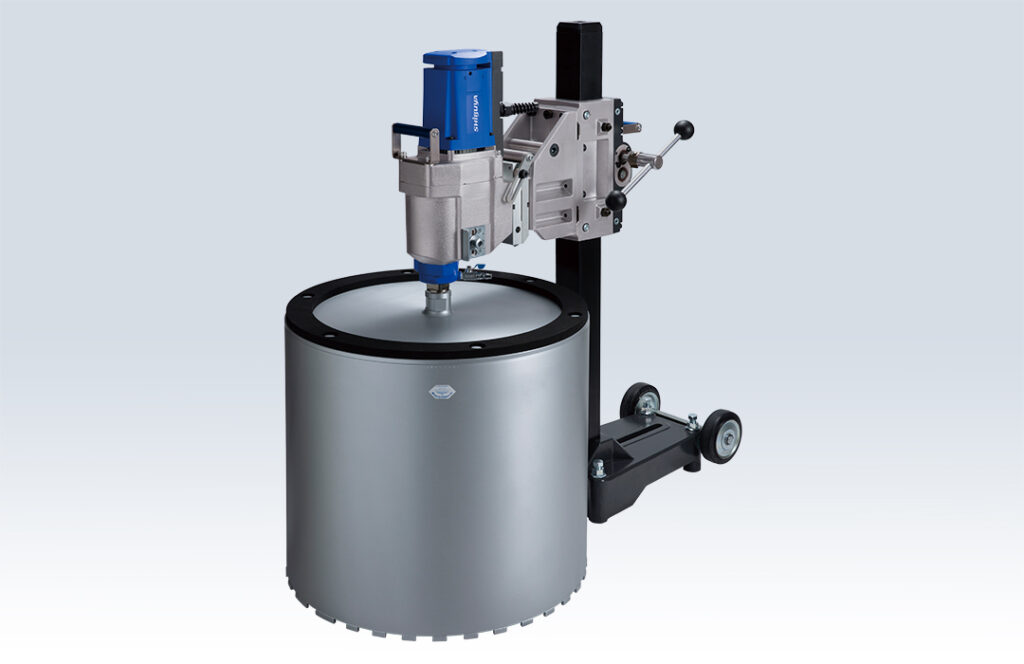

The diamond core bit in the picture is not included in the item.

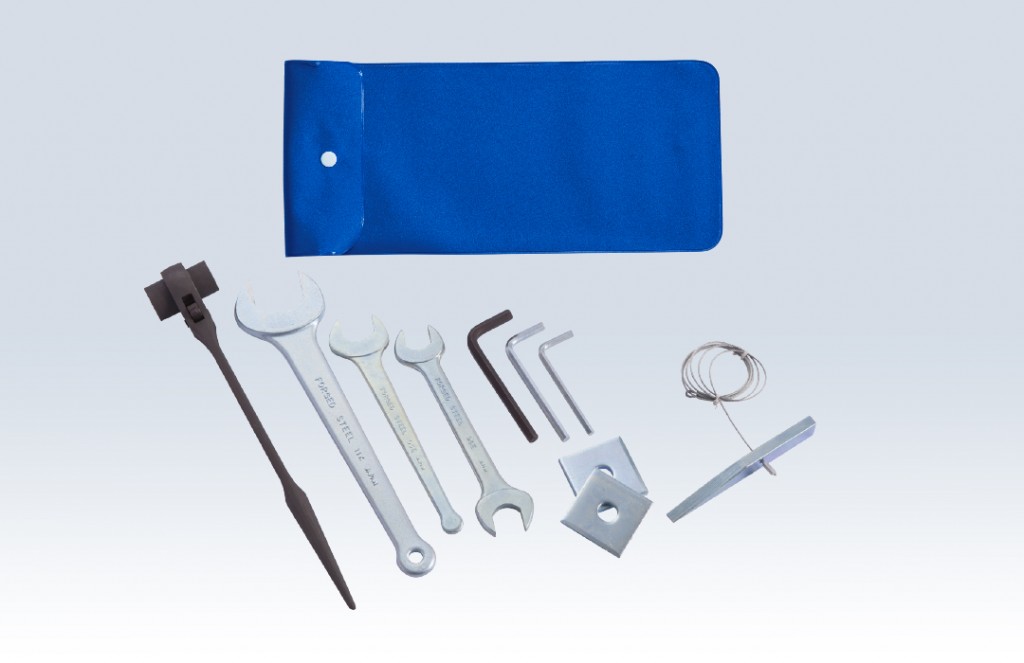

Standard Tool Kit

TS-405

Allen Key 5, 6, 8 mm
Ratchet Wrench 19 x 21 mm
Double-End Spanner 19 x 21 mm
Single-End Spanner 24, 36 mm
Core Removal Wedge Lasso
W1/2″ Square Washer
